Client:

A vehicle manufacturing company

Demand:

Electric power steering system for public buses

Introduction:

In 2023, a vehicle manufacturing company enlisted our expertise for the electric power steering system implementation in their public buses. We recommended our latest R-EPS solution, specifically engineered for large commercial vehicles like city buses.

Our R-EPS solution operates as a pure electric power steering system, regulating the power steering motor’s operation and torque output. This control is facilitated through the processing and calculation of inputs from the vehicle’s driving speed, steering torque, and steering angle, managed by the steering electronic control unit (ECU). The system serves as a pivotal device, optimizing the power steering effect to ensure smooth and precise vehicle maneuverability.

Technical Features of Brogen R-EPS

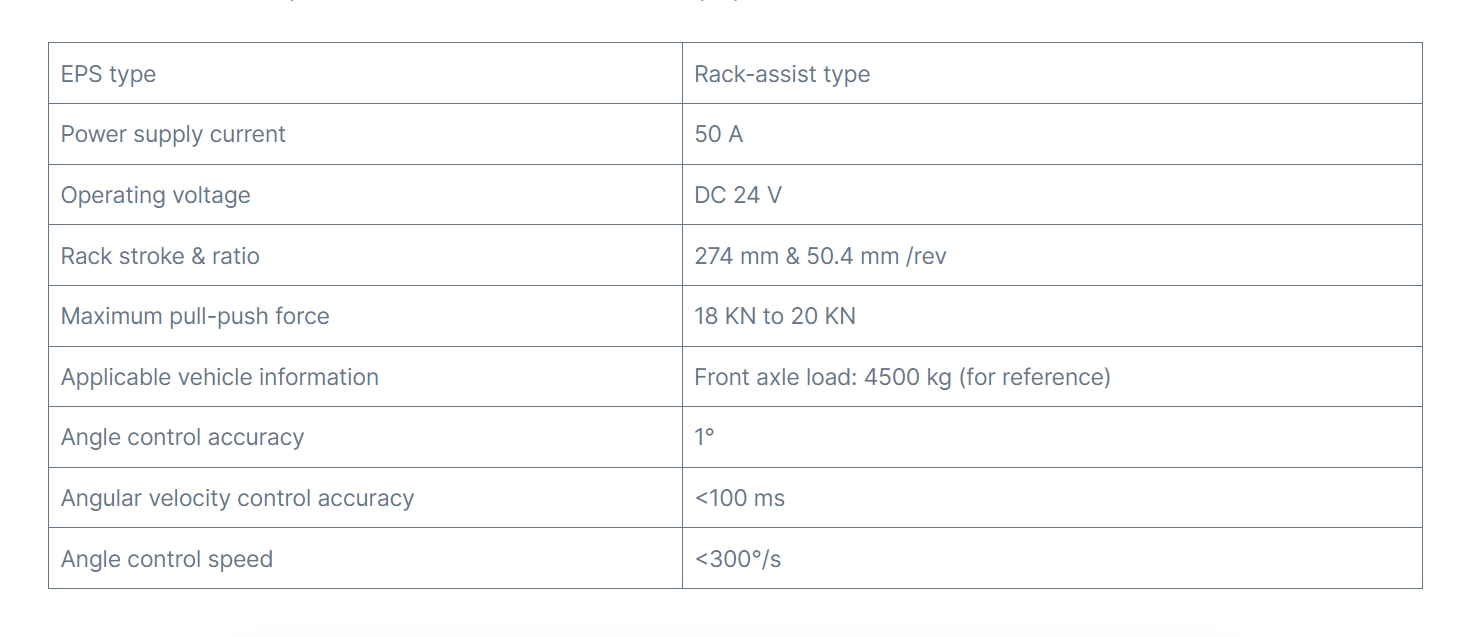

Here are the technical parameters of the EPS we used in this project:

Installation of the R-EPS on the Pure Electric Bus

We’ve successfully integrated our EPS into the 8.5-meter pure electric bus, which has a maximum front axle load capacity of 4500 kg. Our electric power steering system has replaced several electro-hydraulic steering components originally present in the bus.

Real Vehicle Calibration and Testing

Our EPS system has undergone real vehicle calibration, ensuring optimal performance and functionality.

• Power Supply: Aligning with the original low-voltage wiring harness of the vehicle chassis, the power line is routed to the 24V battery, which then supplies power to the EPS.
• CAN Communication Integration: Receives vehicle speed signals in accordance with the vehicle CAN communication protocol.
• Activation of EPS System: Initiate the vehicle by shifting to the START gear, thereby entering the ready mode.
• Steering Function Implementation: Experience enhanced maneuverability with our EPS system’s responsive steering capabilities. From spot steering to normal road driving, our EPS provides noticeable power assistance, resulting in lighter steering torque and precise steering response.
• Active Return to Center Functionality: While navigating urban roads, our system ensures a smooth and seamless return to the center position when the steering wheel is released after turning to any angle, enhancing the overall driving experience and safety.
