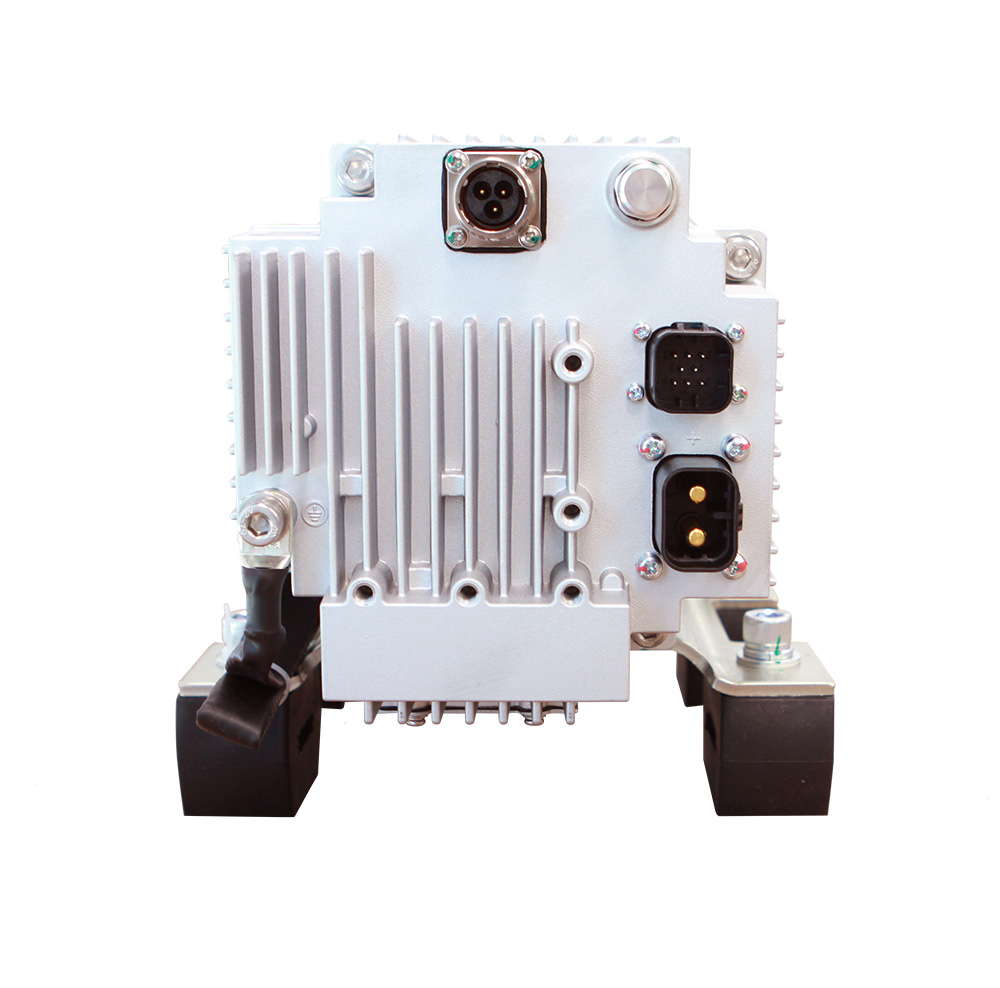

Dual Power EHPS Pump
.jpg)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
.jpg?x-oss-process=image/resize,w_100/quality,q_100)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Solution Features
| Increased controllability | |||||||||
| Speed-dependent steering assistance | |||||||||
| Dual power versions available | |||||||||
| Tailored OEM solutions available | |||||||||
| Adapt to commercial vehicles | |||||||||
Advantages
| Enhanced Safety | |||||||||
| The dual power electric steering pump operates using both a high voltage battery pack (DC540V) and a low voltage battery (DC24V). If the high voltage supply disconnects suddenly, the low voltage system takes over, allowing the electric power steering to function seamlessly. | |||||||||
| Improved Comfort | |||||||||
| When manoeuvring, the steering is light to handle. But at a high speed, the steering is more stable. | |||||||||
| Improve Fuel Economy | |||||||||
| The steering pump is no longer powered by the engine, but by an electric motor that operates only when steering assist is needed, enhancing overall fuel economy. |
Parameters
| Dual Power EHPS Pump | High voltage module motor parameters | ||||
| Rated Power | Peak Power | Rated Voltage | Flow | Max pressure | |
| 1.5 kW | 3.0 kW | 400 - 750 VDC | 12 L/min | 13±0.3 MPa | |
| 3.0 kW | 7.5 kW | 400 - 700VDC | 20 L/min | 15±0.3 MPa | |
| Low voltage module motor parameters | |||||
| Rated Voltage | Peak Power | Rated Speed | Peak current | Peak torque | |
| 12 VDC | 2.0 kW | 1200 rpm | 120 A | 3.0 Nm | |
| 24 VDC | 2.0 kW | 1200 rpm | 120 A | 3.0 Nm | |
