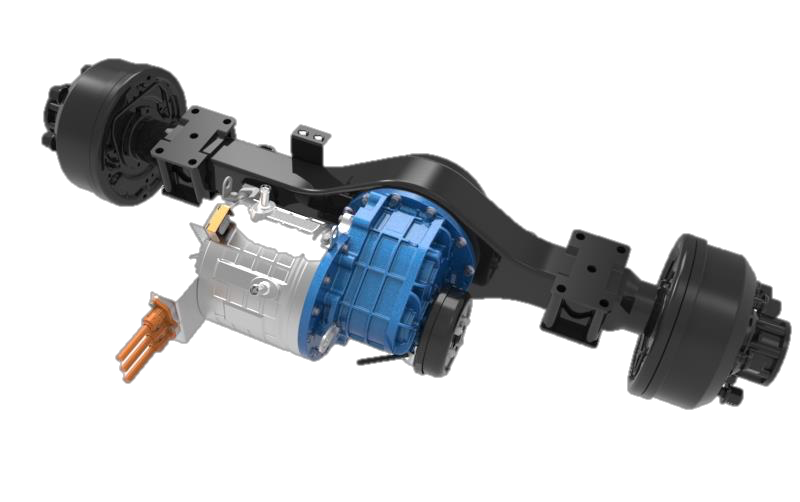

110kw 120kw Electric 3.5T Light Truck Integrated Differential Rear Axle E axle
110kw 120kw Electric 3.5T Light Truck Integrated Differential Rear Axle E axle
110kw 120kw Electric 3.5T Light Truck Integrated Differential Rear Axle E axle
110kw 120kw Electric 3.5T Light Truck Integrated Differential Rear Axle E axle

110kw 120kw Electric 3.5T Light Truck Integrated Differential Rear Axle E axle

86-21-54381147

brogen@oe-autoparts.com

8613611656385

110kw 120kw Electric 3.5T Light Truck Integrated Differential Rear Axle E axle
110kw 120kw Electric 3.5T Light Truck Integrated Differential Rear Axle E axle
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Parameters

2.5T E-Axle

Application: 3.5T-4.5T light truck

Motor
Type: PMSM
Rated/Peak Power: 60/110kw
Rated/Peak Torque: 150/350Nm
Peak Speed: 11000rpm
Reducer

Speed Ratio: 12
System
Peak Torque: 4200Nm
Peak Speed: 916rpm
Weight: 200kg
Rated axle load: 2500kg

3.5T E-Axle

Application: 4.5T-6T light truck
Motor
Type: PMSM
Rated/Peak Power: 60/120kw
Rated/Peak Torque: 145/335Nm
Peak Speed: 12000rpm
Reducer
Speed Ratio: 16.6
System
Peak Torque: 5300Nm
Peak Speed: 723rpm
Weight: 270kg
Rated axle load: 3500kg


2/2.8T Integrated electric drive axle

For 2~2.8T truck and minivan

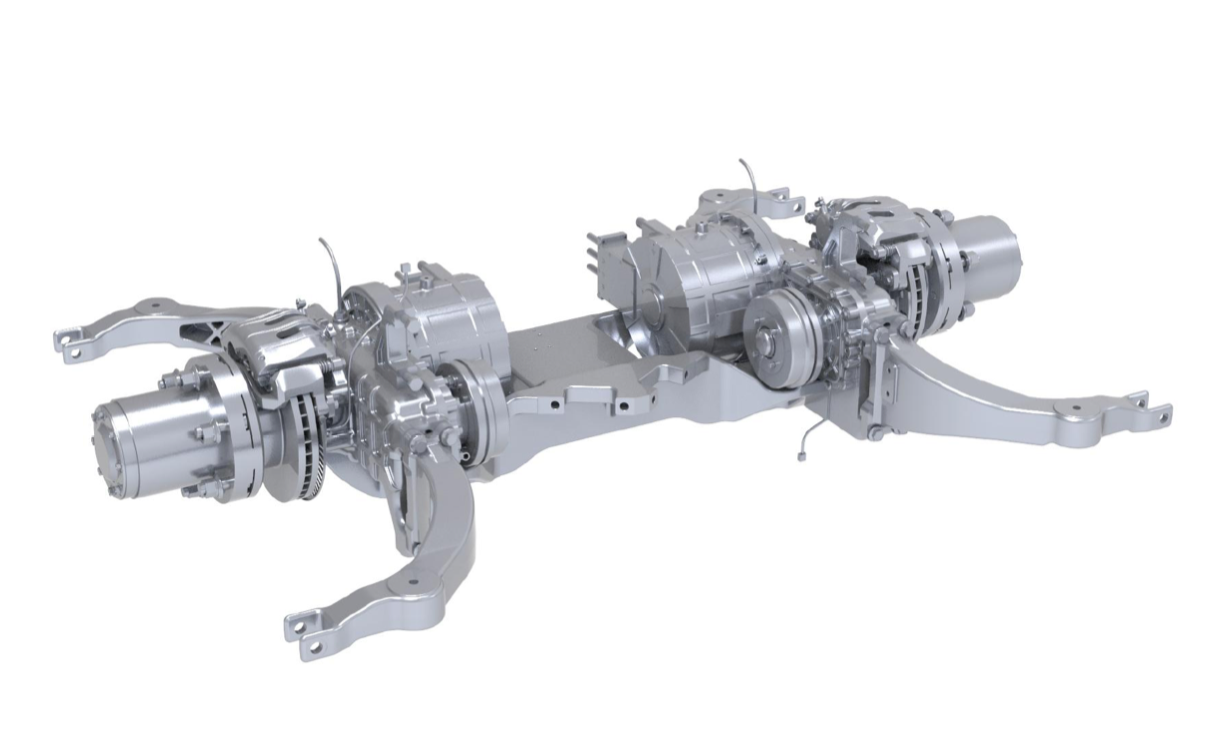

5T Electric Portal Axle

Application: Tourist buses, light-duty trucks
Motor
Type: PMSM
Rated/Peak Power: 2×37/2×74
Rated/Peak Torque: 2×126/2x382N.m
Peak Speed: 10000rpm
Rated Voltage: 540V
System
Gear Ratio: 10.63
Peak Torque: 4200Nm
Peak Speed: 940rpm
Tire Size: 215/75R17.5
Rim Size: 17.5 inch
Brake: Hydraulic disc brake
Weight: 550kg
Protection: IP67
Rated axle load: 5000kg

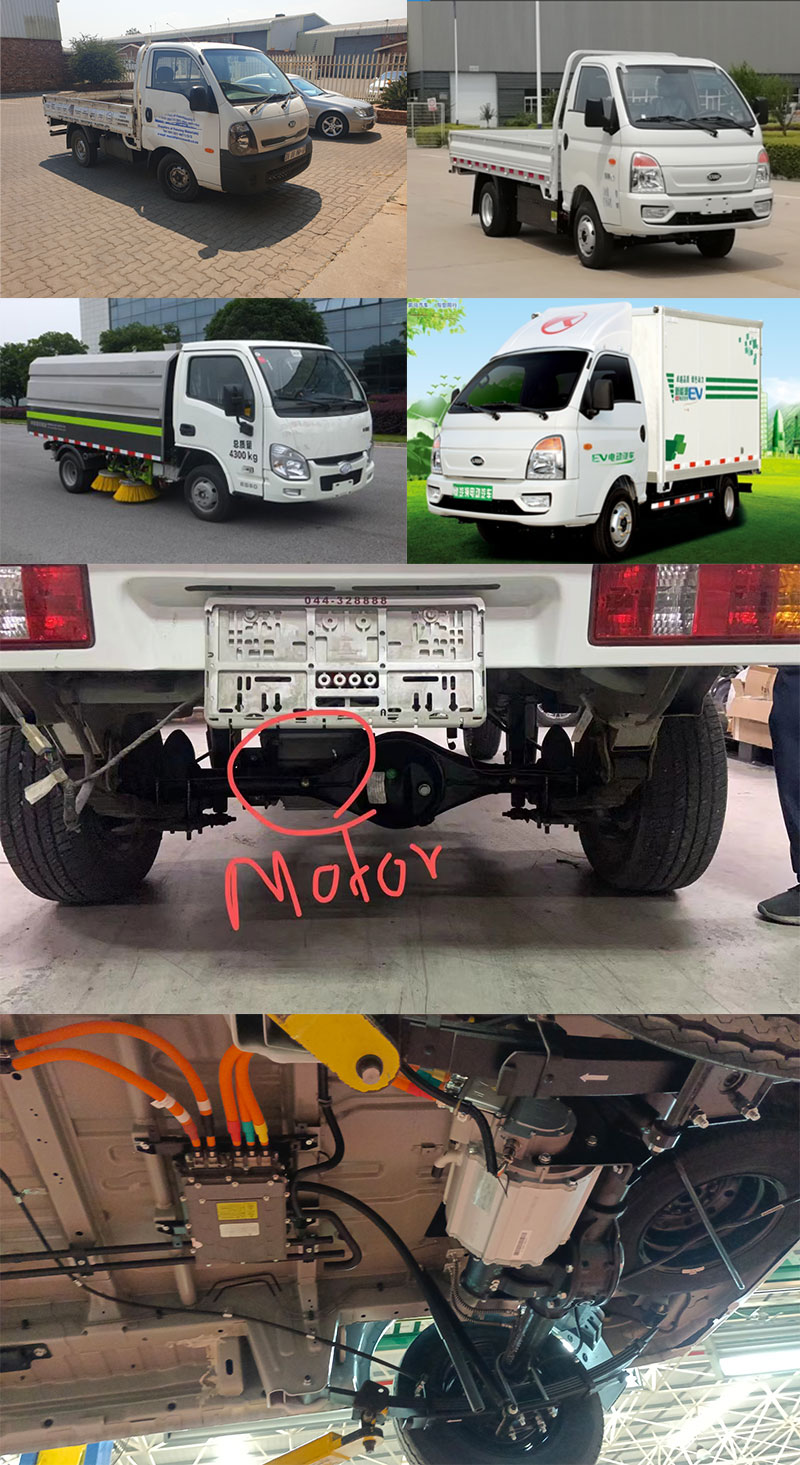

Customer Photo

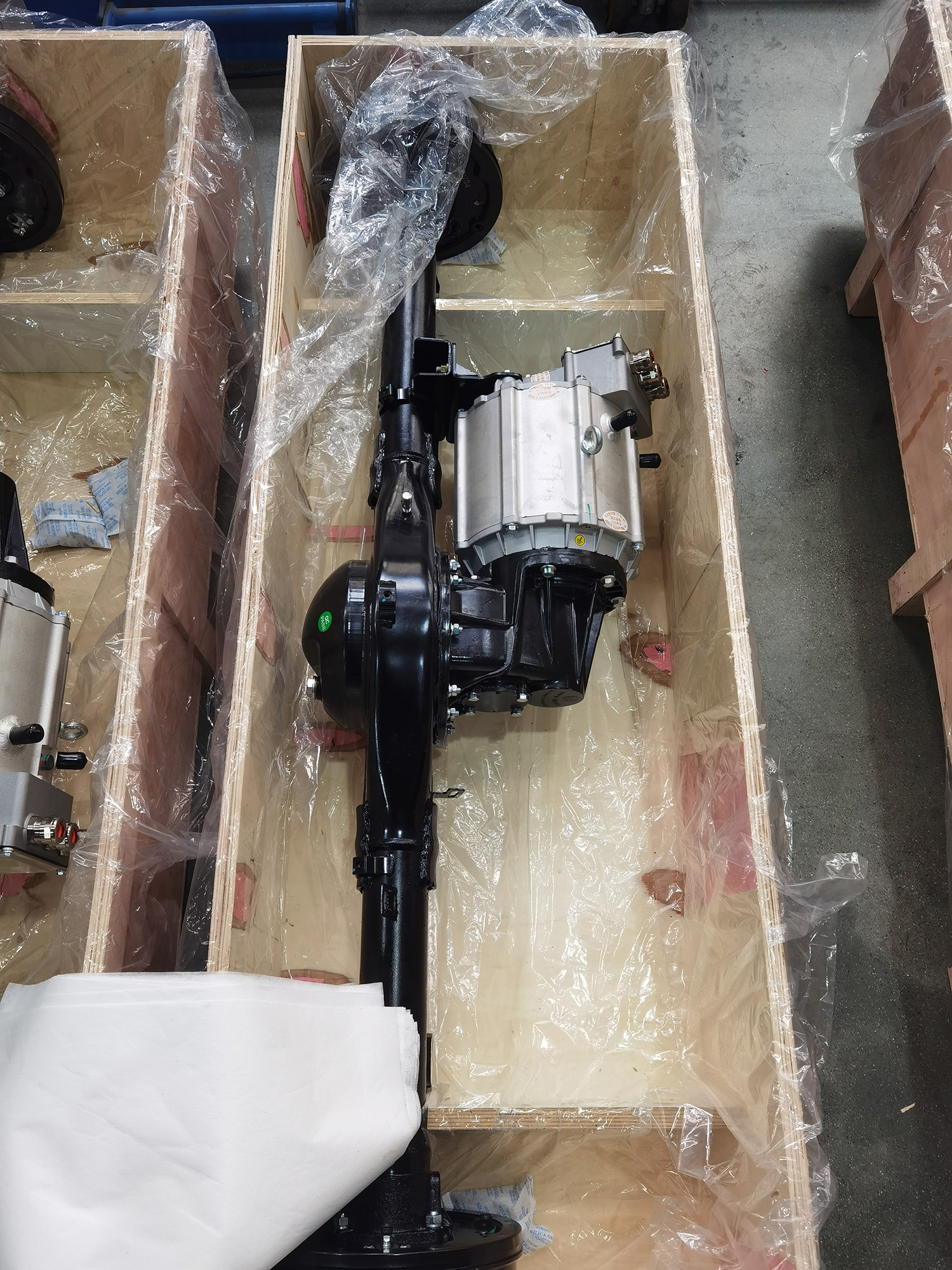

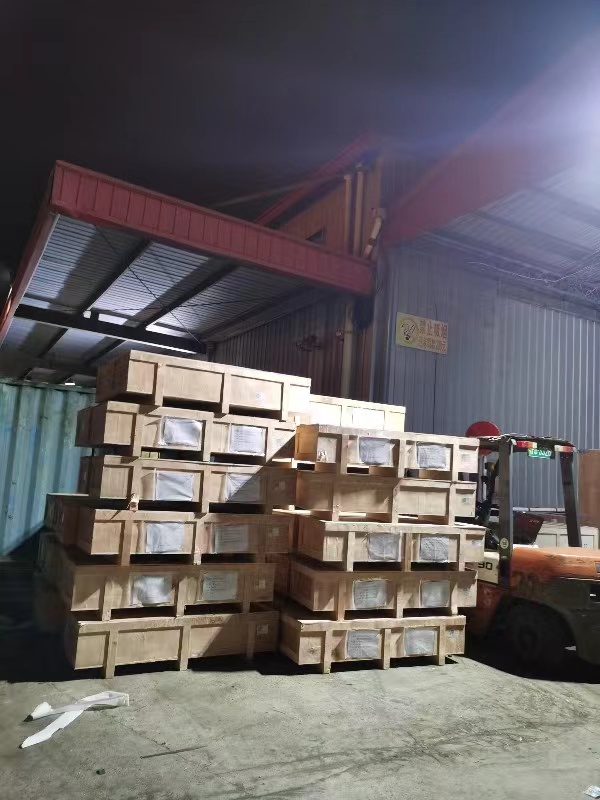

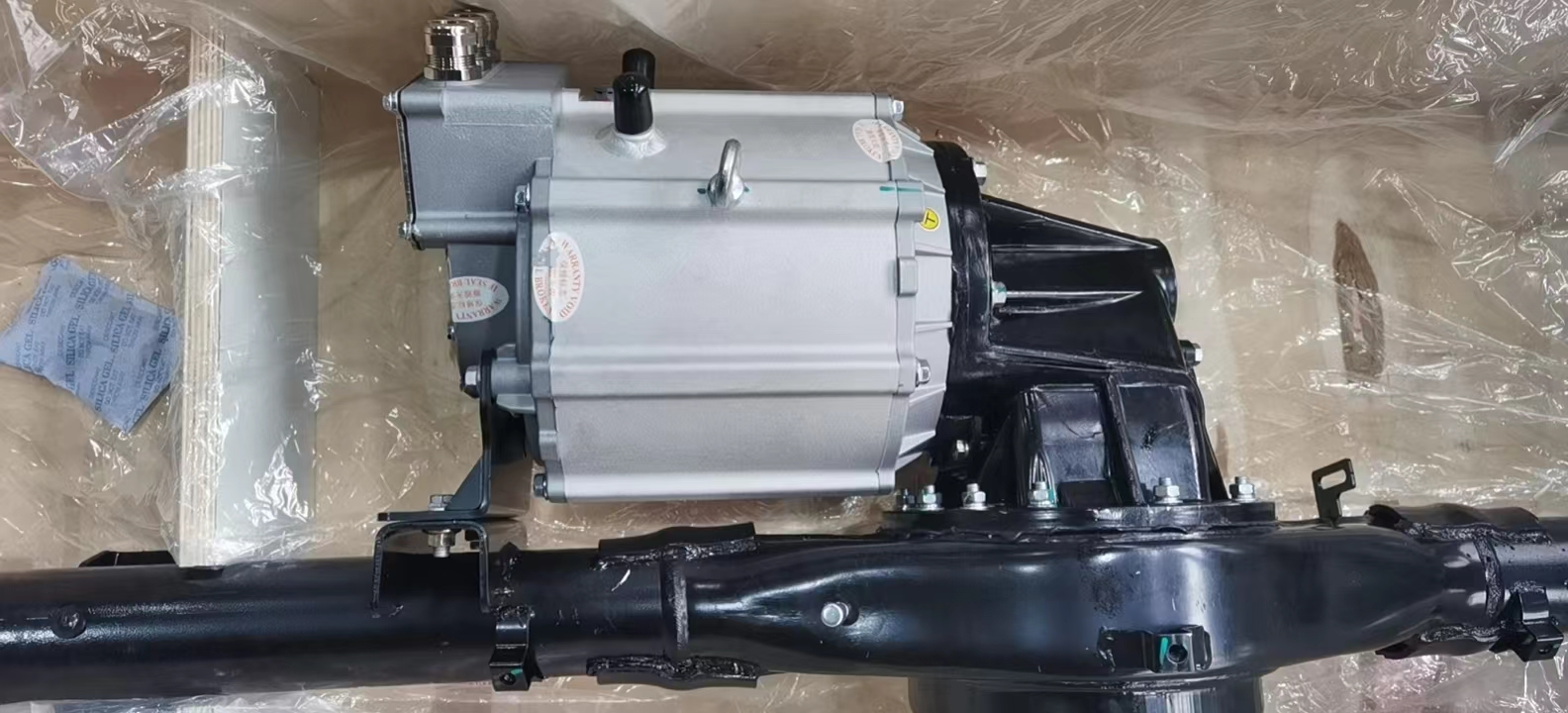

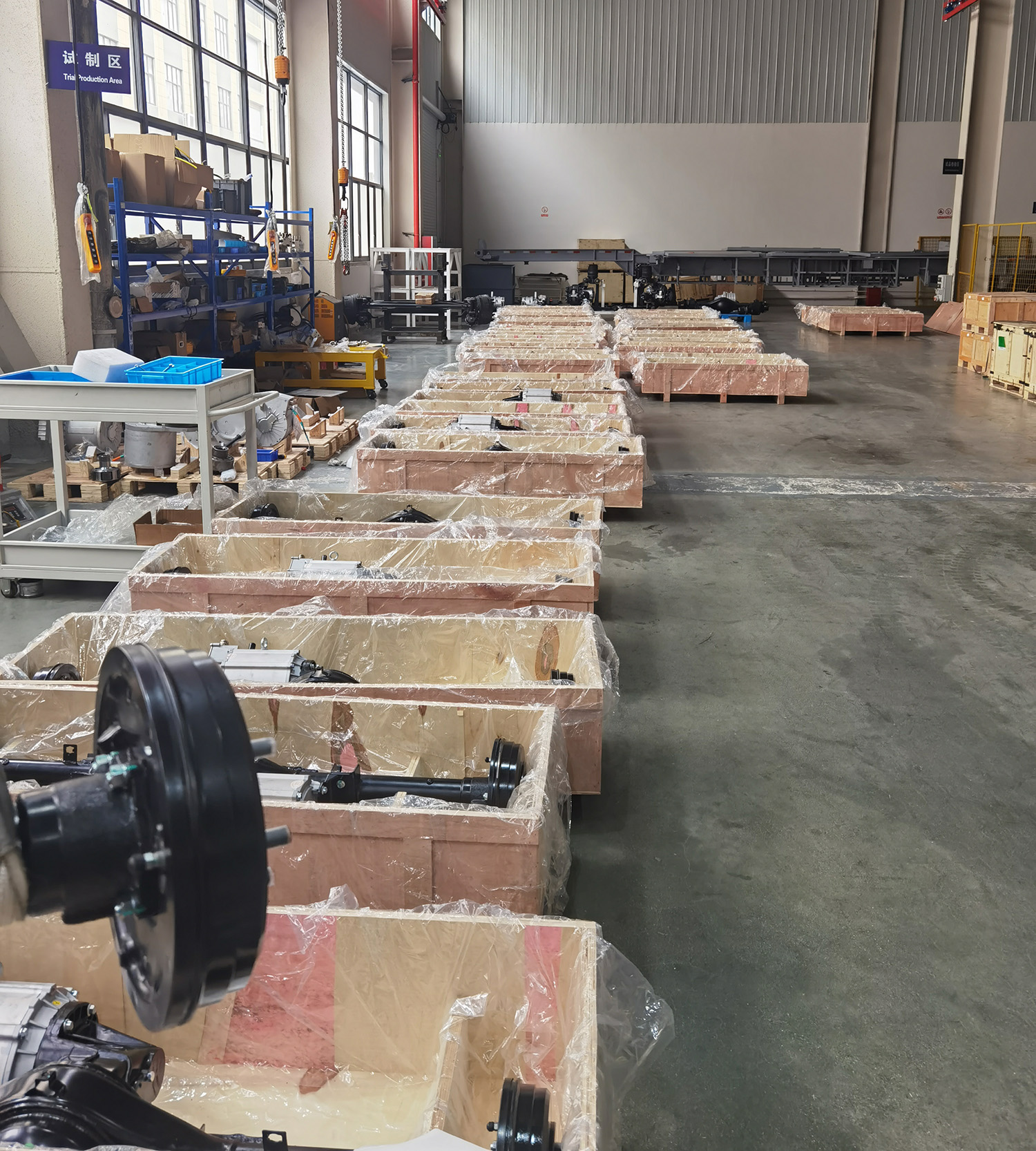

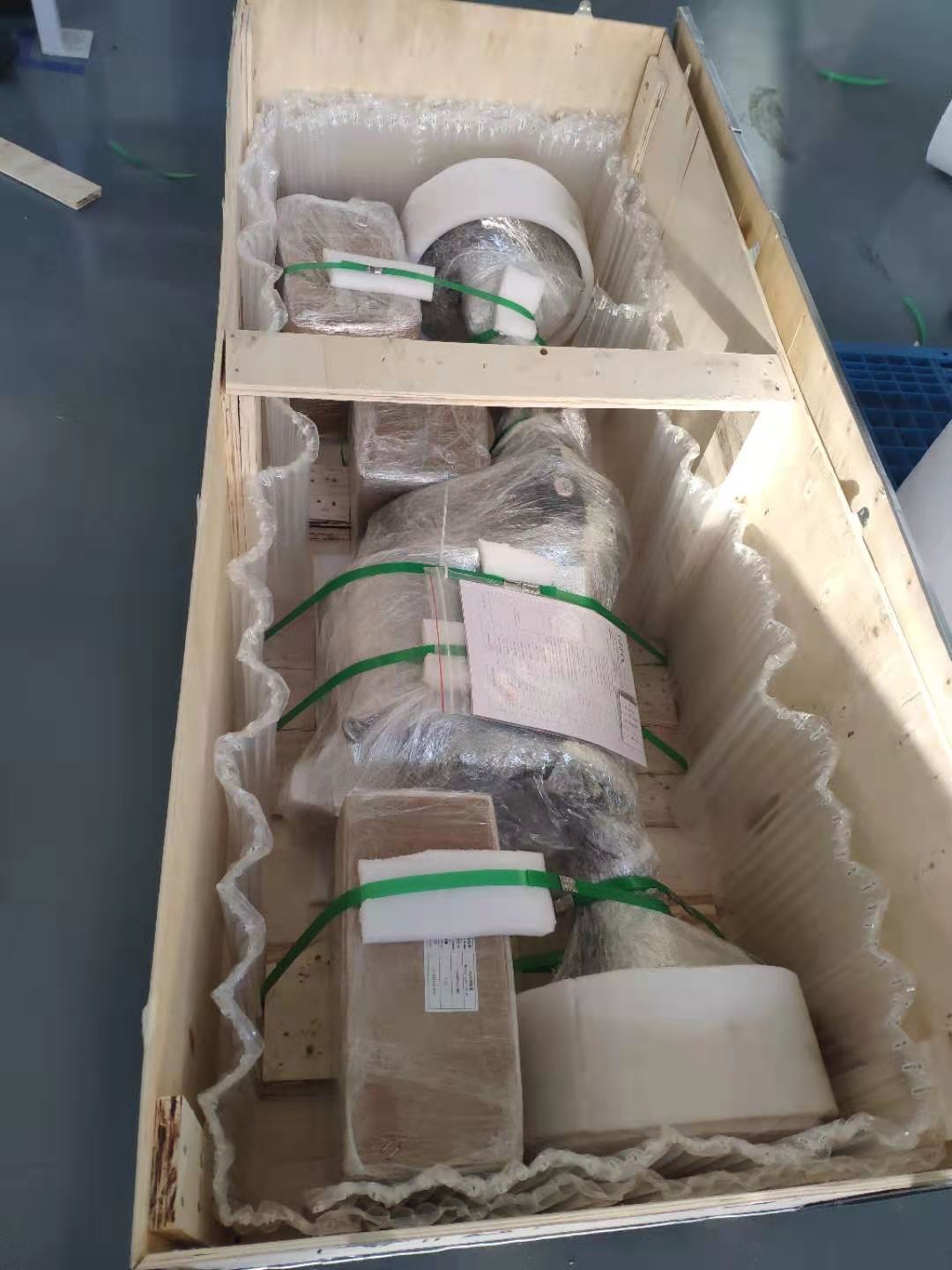

Factory Show
